New Technology

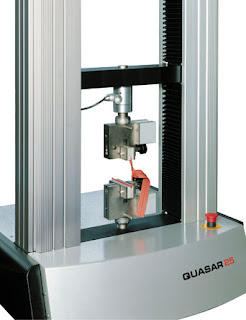

Universal Testing Machine

Qualitest offers the most competitive line of Universal Testing Machines in the industry. This Universal Testing Machines includes an extensive portfolio of grips / fixtures, load cells, extensometers, and many other  accessories. Supported by excellent service and training, our Q-Series is positioned as a top contender in every application market for material testing.

The Q-Series Universal Testing Machines range is designed for quick and reliable tensile, compression, flexural (bending), shear, peel, fatigue cycling, and constant load tests on metals, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

For more details,
 http://www.worldoftest.com

Measuring Systems

3-Wire Thread Measuring System

FEATURES:

• Fast and accurate method of thread measuring available for use with Micrometer Applications
• Measure set of threadplug gages and working thread plug gages
• Monitor the wear on working thread plug gages
• Monitor and control pitch diameter variation during thread fabrication
• Reduce measurement time to a fraction of the time normally taken using the traditional threewire method
• Use in conjunction with “Go” and “No Go”thread ring gages to control thread size to the most demanding specifications
• Determine out of roundness and taper that may exist in threaded parts
• Applications for preplating and post plating thread measurement.

•     Tolerance of Wires:
•     Diameter +/- .000010
•     Roundness +/- .000010
•     Surface finish 2 micro inches AA, lapped.
•     Hardness HRC 59-64
•     Certification of accuracy included.
•     Traceable to NIST.
•     Meets or exceeds all ANSI and ISO specs.

Digimatic Micrometers

ABSOLUTE Digimatic Micrometers Series 227-with Adjustable Measuring Force

FEATURES:

• Constant and low measuring force mechanism in the thimble.
• Adjustable measuring force* accommodates various kind of work materials. *0.5-2.5N or 2-10N
• The measurement-value hold function automatically retains the data at a specified measuring force, ensuring accuracy.
• Non-rotating spindle and the new ratchet friction thimble.
• Speedy spindle feed of 10mm/rev. and .4”/rev for inch/metric model.
• With absolute linear scale.
• With SPC data output.
• With a standard bar to set the origin point (for models with 15 - 30mm / .6” - 1.2” range).
• Supplied in fitted plastic case.

Technical Data

• Accuracy: Refer to the list of specifications.
• Resolution: 0.001mm or .00005"/0.001mm
• Flatness: 0.3µm/.000012”
• Parallelism: 2µm/.00008”
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 3 years under normal use
• (1 year for 15-30mm / .6 - 1.2” range model)

Function

Origin-set, Power ON/OFF, Data hold, Data output, Preset (15-30mm / .6 - 1.2” range model), inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error


Optional Accessories
937387: SPC cable (1m / 40”)
965013: SPC cable (2m / 80”)

Vernier Calipers

ABSOLUTE Coolant Proof Caliper Series 500 with Dust/Water Protection Conforming to IP67 Level


FEATURES:

• Can be used in workshop conditions exposed to coolant, water, dust or oil.
• Easy to use - no need to wipe or clean the scale.
• Advanced design styling.
• Incorporates absolute measurement system.
• Automatic power-on/off.
• Data output function.
• With thumb roller.
• Supplied in fitted plastic case.

Technical Data

• Accuracy: Refer to the list of specifications
• Resolution: 0.01mm or .0005"/0.01mm
• Repeatability: 0.01mm / .0005”
• Display: LCD
• Length standard: ABSOLUTE electromagnetic induction
• linear encoder
• Max. response speed: Unlimited
• Battery: SR44 (1 pc./2 pcs*), 938882
• Battery life: Approx. 3 years under normal use
• (1 year: over 300mm / 12” models)
• Dust/Water protection level:IP67
• *0 - 300mm model

Function

Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (inch/mm models) Alarm: Low voltage, Counting value composition error Optional Accessories



05CZA624: SPC cable with data switch (1m / 40”)
05CZA625: SPC cable with data switch (2m / 80”)

For more details,
 http://www.mitutoyo.com
